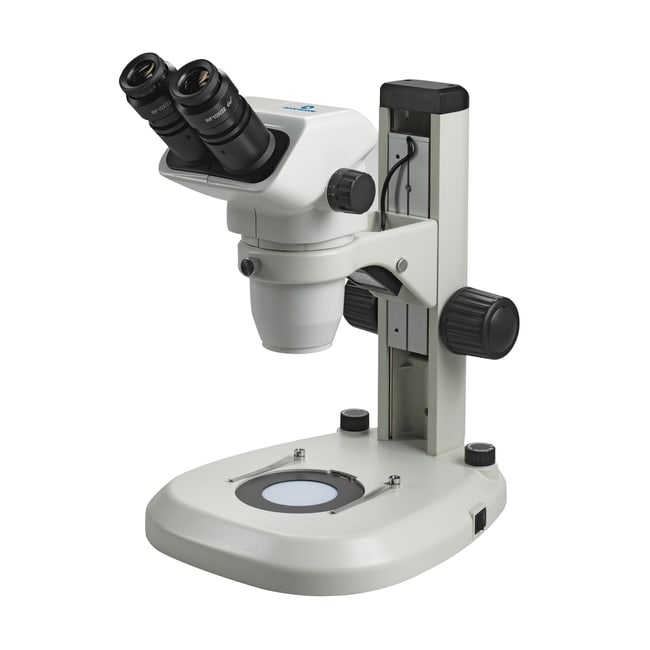

ACCU-SCOPE™ 3075-LED Binocular Zoom Stereo Microscope on LED Stand

The ACCU-SCOPE™ 3075- LED Zoom Stereo Series offers a 0.67x to 4.5x zoom range and delivers unprecedented clarity, detail, and accurate color rendition for industrial, OEM and classroom applications. The 3075-LED features a binocular viewing head, dovetail focusing stand with coarse focus adjustment.

Supplier:  ACCU-SCOPE™ 3075LED

Catalog No. 01-189-228

Description

• Optical System: Greenough
• Viewing Head: Binocular or Trinocular viewing head, inclined 45°.
• Interpupillary Distance Adjustment: 54 to 76 mm, diopter adjustment ± 5 mm.
• Eyepieces: WF10x focusable eyepieces, 22 mm field of view. Eyeguards included.
• Objectives: Zoom magnification objective 0.67x to 4.5x.
• Anti-fungal treatment protects the optical system in hot, humid environments.
• Focusing System: Dual focusing knobs with adjustable tension control.
• Stage: Diffused stage plate in the base provides even illumination.
• Stand: Cast aluminum alloy. LED stand, variable incident and transmitted coarse focus stand, 100 mm focusing travel, pod holder, stage clips, and universal power supply.
• Accessories: Dust cover and instruction manual.
• Certification: ISO 9001: 2018 and ISO 14001: 2018
• Warranty: 5-year limited warranty for parts, labor, and electronic components.

Specifications

• Voltage: 110/240 V
• Objective Types: Zoom Stereo
• Lighting Type: LED

• Magnification Power: 6.7X to 45X
• Head Style: Binocular, 45° Inclined
• Eyepiece: WF 10X/22 mm
