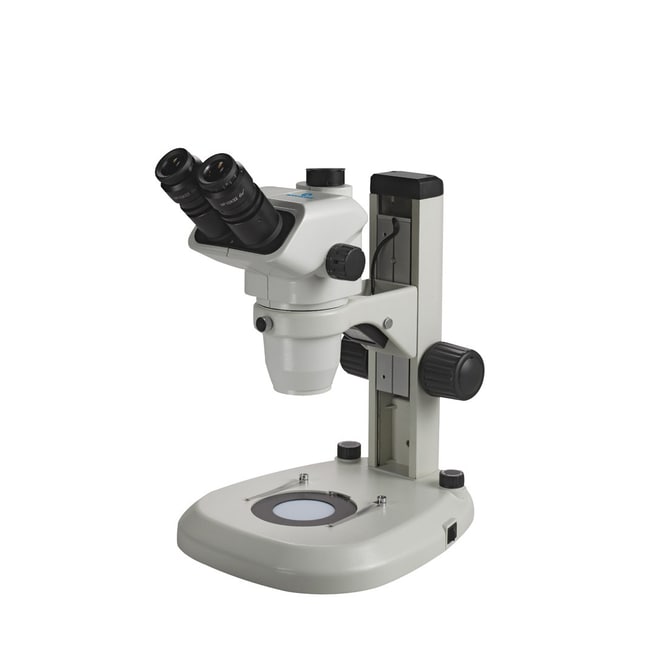

ACCU-SCOPE™ 3076-LED Trinocular Zoom Stereo Microscope on LED Stand

The ACCU-SCOPE™3076-LED delivers excellent flatness and tremendous depth of field via our most advanced Greenough optical system ever. Incorporating the latest in ergonomic, optical, and mechanical designs. The 3076-LED features a trinocular viewing head and dovetail focusing stand.

Supplier:  ACCU-SCOPE™ 3076LED

Catalog No. 01-189-225

Description

• Optical System: Greenough
• Viewing Head: Binocular or Trinocular viewing head, inclined 45°.
• Interpupillary Distance Adjustment: 54 to 76 mm, diopter adjustment ± 5 mm.
• Eyepieces: WF10x focusable eyepieces, 22 mm field of view. Eyeguards included.
• Objectives: Zoom magnification objective 0.67x to 4.5x.
• Anti-fungal treatment protects the optical system in hot, humid environments.
• Focusing System: Dual focusing knobs with adjustable tension control.
• Stage: Diffused stage plate in the base provides even illumination.
• Stand: Cast aluminum alloy. LED stand, variable incident and transmitted coarse focus stand, 100 mm focusing travel, pod holder, stage clips, and universal power supply.
• Accessories: Dust cover and instruction manual.
• Certification: ISO 9001: 2018 and ISO 14001: 2018
• Warranty: 5-year limited warranty for parts, labor, and electronic components.

Specifications

• Voltage: 110/240 V
• Objective Types: Zoom Stereo
• Lighting Type: LED

• Magnification Power: 6.7X to 45X
• Head Style: Binocular, 45° Inclined
• Eyepiece: WF 10X/22 mm
