Motic AE2000 Digital Transmitted Light Inverted Microscope

This New AE2000 Digital Transmitted Light Inverted Microscope is equipped with Moticam BMH4000X, providing a flexible optical concept to meet best image quality and robust design for a long lifetime. It is the ideal solution for routine cell culture in clinical, laboratory and university teaching.

Supplier:  Motic 1100501700014

Catalog No. 01-257-887

Description

• In full accordance with Motic's CCIS™ Infinity System, the AE2000 Digital Transmitted Light Microscope offers a completely upgraded class of Plan Achromatic lenses within the CCIS Infinity Optical concept. This upgrade covers a complete range of the following magnifications for bright field and phase contrast: 4X, 10X, 20X and 40X. New in this level of microscopy is the special designed 4X Phase objective for fast overview and screening examinations.
• The AE2000 Digital stand carries a quadruple nosepiece with a precise detent stop for objective positions. Rich illumination is provided by the 3W LED light source in a Fixed-Koehler setup. If desired you may simply interchange with a 30 Watt Halogen module.
• The Auto ON/OFF function, based on a built-in IR-sensor, deactivates the microscope in case it is left by the user: no need for a final instrument check when work is finished.
• The complete AE2000 Digital Transmitted Light Microscope is manufactured in compliance with European RoHS standards to avoid contact with lead-containing materials. An anti-fungus treatment is applied to all parts of the microscope to protect the system in humid environments.

Specifications

• Voltage: 100/240 V
• Diaphragm: Iris diaphragm
• Objective Types: CCIS Plan Achromatic, CCIS Plan Achromat Phase
• Weight (Metric): 12.2 kg
• Eyepiece: N-WF 10X/20 mm, with diopter adjustment on both
• Head Style: Siedentopf Trinocular, 360° Swiveling
• Camera Type: Moticam BMH4000X
• Model: AE2000 Trinocular
• Product Type: Inverted Trinocular Microscope

• Condenser Type: ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
• Magnification Power: 4X, 10X
• Nosepiece: Left side facing quadruple

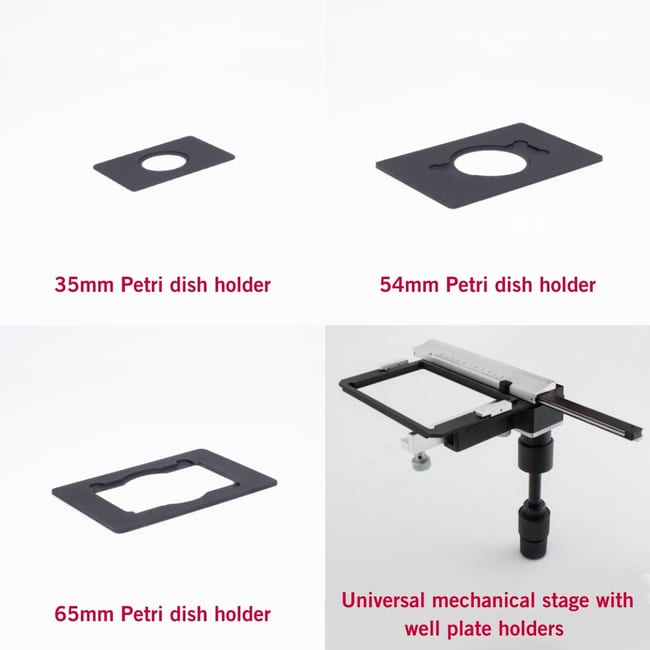

• Stage: Plain stage with metal and glass stage inserts
• Lighting Type: Quartz Halogen, LED
• Dimensions (L x W x H): 556 x 218 x 496 mm
• Display Type: LCD
• Product Line: AE2000
