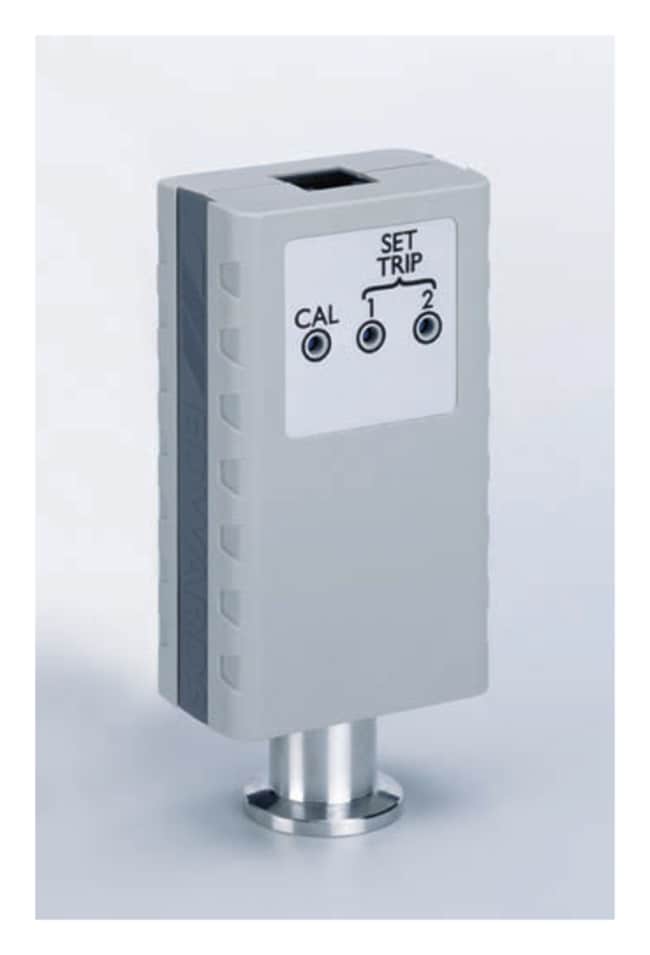

Edwards Active Linear Pirani Gauge

Supplier:  Edwards D02371000

Catalog No. 11-283-115

Description

Compact gauge is mountable in any orientation, simplifying installation where space is limited. Wide measuring range from atmosphere to 10^-3mbar; accuracy is ±15% at <100mbar. Includes two push-button adjustable set points for process control and diagnostics reporting. Two LEDs indicate set point and gauge status. Provided with replaceable precalibrated aluminum tube in which calibration data is stored. Tube is equipped with gold-coated tungsten filament and NW16 vacuum fitting.
Operating temperature range: 5° to 55°C (41° to 131°F).

Order Info

Weight, 0.3 lb. (0.12kg). Dimensions: /4L × 1 1/4W × 4 3/4 in.H (5.6 × 3.4 × 12cm). Use 9 3/4 ft. (3m) cable (11-283-117), which has FCC68-compatible connections at both ends, to connect gauge to display (11-283-116).

Compliance

Complies with low emission and high immunity EMC standards.

Specifications

• Operating Temperature (English): 41°F to 131°F
• Dimensions (L x W x H): 2.25 x 1.25 x 4.75 in. (5.6 x 3.4 x 12 cm)
• Weight (Metric): 0.13 kg
• Accuracy: ±15%
• Height (Metric): 12 cm
• Weight (English): 0.3 lb.
• Height (English): 4.75 in.
• Width (English): 1.25 in.

• Operating Temperature (Metric): 5°C to 55°C
• Width (Metric): 3.4 cm
• Length (Metric): 5.6 cm
• Display Type: LED
• Certifications/Compliance: EMC
• Product Type: Active Linear Pirani Gauge
• Includes: Two push-button adjustable set points, two LEDs indicate set point and gauge status, replaceable precalibrated Aluminum tube, tube is equipped with Gold coated Tungsten filament and NW16 vacuum fitting
• Length (English): 2.25 in.
